eXact Auto-Scan

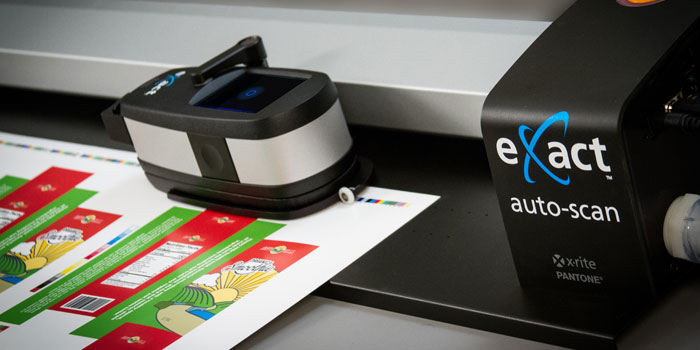

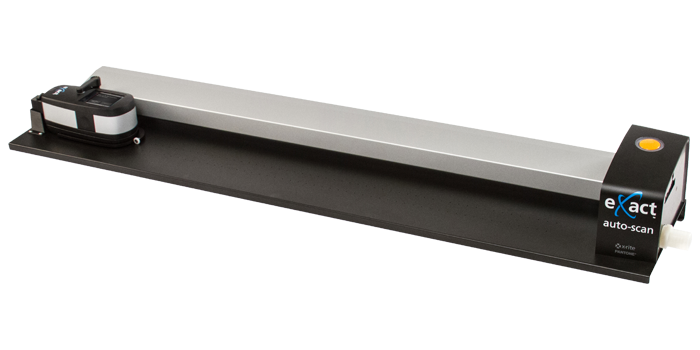

The X-Rite eXact Auto-Scan is a versatile scanning solution designed for press operators that provides press room flexibility for measuring color with spot, manual, and automated scanning capabilities.
One Instrument, Ultimate Flexibility.
Cut your make ready time by more than 30%.
With a push of a button, the eXact Auto-Scan minimizes human error when scanning to maximize speed, reduce rework, and deliver a finished product that meets your customers tight tolerances.
Improve Color Quality
- Enhances spot color handling with creation and management of standards and color libraries on your device
- Reduces variance among your instruments and verifies and/or profiles your device anytime on site with the addition of NetProfiler software
Reduce Material Waste
- Fast, press-side, fully-automated capabilities (readings under 15 seconds), results in a reduction in waste and increased profitability
- Increases workflow productivity by running jobs to specific targets and standardizing your production process
- Provides immediate, comprehensive reporting of color data through Bluetooth technology, allowing you to make prompt adjustments to the press run
Expand Your Workflow
- Integrates with closed loop and third-party solutions such as Rutherford Graphics or Digital Information to deliver a mid-range solution for ink key control adjustments
- Incorporates into your current workflow
Specifications
| 3rd Party Software Supported | X-Rite InkKeyControl, eXact Manager, NetProfiler, and third party scanning integrators |
| Aperture | eXact Auto-Scan supports 1.5mm & 2mm |
| Battery | Lithium Ion, 7.4VDC, 2200mAh |
| BestMatch Feature | Yes |
| Black Background With Sheet Storage | Black Background |
| Calibration | Automatic on integrated white reference |
| Closed Loop Support | Yes |
| Color Bar Alignment | Laser |
| Color Differences | CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Color Spaces | CIE L*a*b*, CIE L*C*h°, CIE XYZ and Yxy |
| Communication Interface | USB 2.0; Bluetooth (optional) - Class II |
| Configuration Options | NetProfiler |
| Connectivity | USB 2.0, Bluetooth |
| Density Range | 0.00 D – 3.00 D |
| Density Standards | Status A, E, I, T and G |
| Experience Level | Press Operators, Print Quality Managers interested in controlling color throughout the workflow and reducing make-ready waste. |
| G7 Certification | Yes with embedded G7, PSO, JapanColor job templates |
| Humidity | 30% to 85% RH (non-condensing) |
| Illuminants | A, C, D50, D55, D65, D75, F2, F7, F11, D12 |
| Import/Export Format | CxF3, SDF, SVF, TVF |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2009 |
| Instrument Display | Color touch-screen, 320 x 240 pixels |
| Inter-Instrument Agreement | 0.3 dE*ab |
| Internal Temperature & Humidity Sensor | Yes |
| Languages Supported | Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese |
| Light Source | Gas filled tungsten (illuminant type A) and UV LED |
| Measurement Conditions | M0, M1 (part 1), M1 (part 2) , M2, M3; also available in Xp variant for flexible packaging substrates. |
| Measurement Geometry | 45°:0° ring illumination optics, ISO 5-4:2009 |
| Measurement Spot | eXact Auto-Scan supports 1.5mm & 2mm |
| Media Thickness | 1mm or less |
| NetProfiler Support | Yes |
| Operating Temperature Range | 10°C to 35°C; 50°F to 95°F |
| PantoneLIVE Support | Yes, for Auto-Scan with the eXact |
| Pass / Fail | Yes |
| Patch Size | 3mm minimum with 1.5mm aperture |
| Sample/Measurement | Max 5,000 samples on the eXact |
| Scan Length | 29" (74 cm) or 40"(102 cm) maximum length depending on track size |
| Scanning Capability | Yes |
| Scanning Speed | 7" / sec (160 mm / sec) |
| Service Indicator | Certification Reminder |
| Single Pass Scan | Yes |
| Software Development Kit | Yes |
| Spectral Analyzer | DRS Spectral Engine |
| Spectral Range | 400 nm to 700 nm |
| Spectral Reporting | 400 nm to 700 nm with 10nm interval |
| Standards | More than 20,000 standards (incl. data for all M modes); New Color Library Tool to Create and Store Standards. |
| Storage Temperature Range | -20° to 50°C, -4° to 122°F |
| Track Sizes | 29" (74cm) or 40"(102cm) |
| Unit Color | Black/Silver |
| User Experience | Designed for commercial offset printers. Easy set-up and install with track and InkKeyControl software. Option to purchase a turnkey computer solution loaded with the software (N. America). |
| Voltage | 12 VDC @ 2.5 A |
| Warranty | 1 year |
| What's Included? | Track, power supply, interface cables, eXact Standard or Advanced with Scan and BlueTooth (if purchased), InkKeyControl software (if purchased) and documentation, guide, carrying case, device certificate |
| Windows | Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit) |
