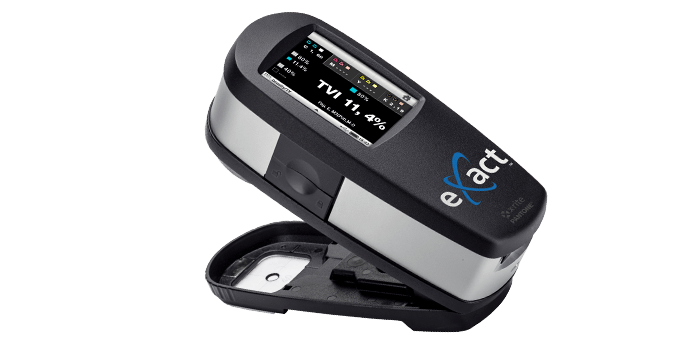

Looking for a simple device to measure density on press? The eXact Basic densitometer is designed specifically for CMYK jobs, enabling you to achieve and maintain accurate color throughout the run. With the eXact Basic, you can replace visual trial and error with fact-based color control for improved accuracy and consistency.
Inter-Instrument Agreement
Measurement Time
Device Geometry
The eXact Basic doesn’t just validate the color of CMYK and spot color inks, it facilitates a new level of print control. With an easy-to-use touchscreen for quick measurements and an intuitive set-up wizard, the eXact can help you meet quality targets and reduce make ready time by 10% for a fast ROI.
The eXact Basic is upgradeable by password to any higher-end spectrophotometer within the eXact Family, making it a single portfolio that grows with your business needs.
Generates automatic color recognition for CMYK and paper, solid, and tint patch types
Intuitive set-up wizard facilitates quicker start up and less downtime
Protects the instrument from pressroom dust at all times
| Aperture | 2 mm, 4 mm |
| Battery | Lithium Ion, 7.4VDC, 2200mAh |
| BestMatch Feature | no |
| Communication Interface | USB 2.0; No Bluetooth |
| Connectivity | USB |
| Density Range | 0.0 D – 3.0 D |
| Density Standards | Status A, E, I, T and G |

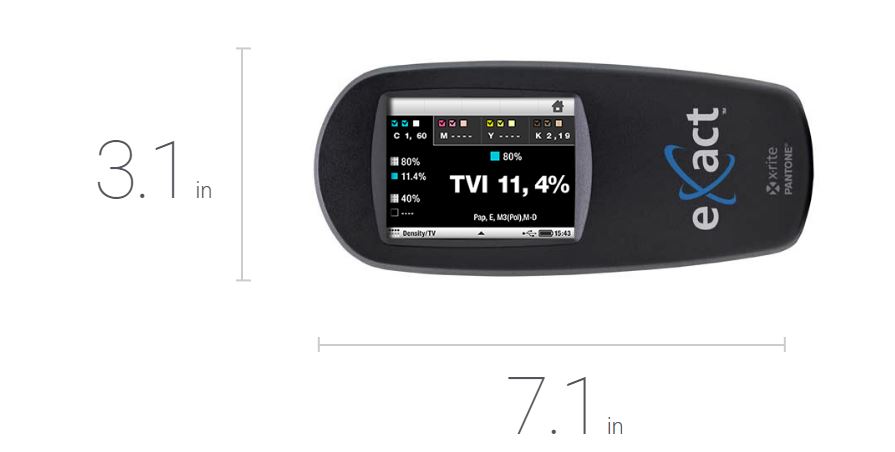

| Dimensions (length, width, height) | 18 cm x 7.8 cm x 7.6 cm 7.1" x 3.1" x 3.0" |
| Humidity | 30 to 85% RH (non-condensing) |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2009 |
| Instrument Display | Color touch-screen, 320 x 240 pixels |
| Internal Temperature & Humidity Sensor | 30 to 85% RH (non-condensing) |
| Languages Supported | Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese |
| Light Source | Gas filled tungsten (illuminant type A) and UV LED |
| Macintosh | MacOS X 10.10, 10.11, 10.12, 10.13 |
| Measurement Conditions | M0, M1 (part 1), M1 (part 2) , M2, M3 |
| Measurement Geometry | 45°/0° ring illumination optics, ISO 5-4:2009(E) |
| Measurement Time | < 1 sec |
| NetProfiler Support | No |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| Optical Brigtener Compensation (OBC) | No |
| PantoneLIVE Support | No |
| Pass / Fail | No |
| Service Indicator | Certification Reminder |
| Short Term Repeatability - Density | '+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D) |
| Software Development Kit | Yes |
| Software Modes | Basic |
| Spectral Analyzer | DRS Spectral Engine |
| Spectral Range | 400nm to 700nm |
| Storage Temperature Range | '-20° to 50°C -4° to 122°F |
| User Experience | Start-up wizard, configurable, upgradable |
| Voltage | 12 VDC @ 2.5 A |
| Warranty | 1 year |
| Weight | 700 g 1.6 lbs. |
| What's Included? | USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate |
