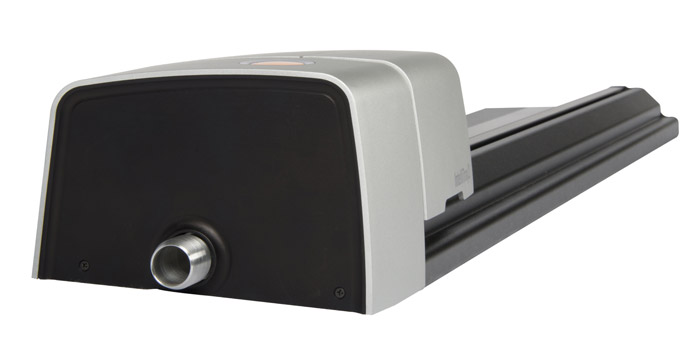

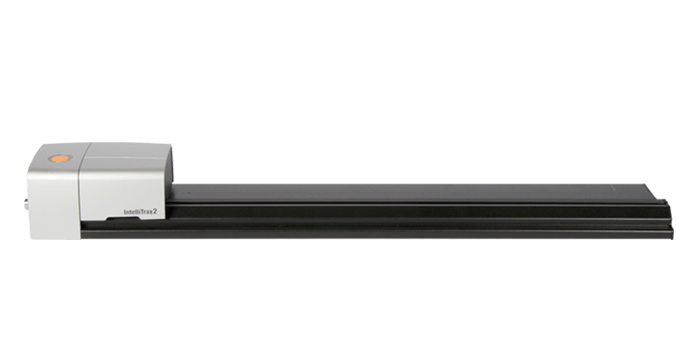

IntelliTrax2
With the IntelliTrax2, you can scan a color bar on a typical press sheet in less than 10 seconds. IntelliTrax2 is the ideal color management solution for high-end, high-speed printing/converting operations.

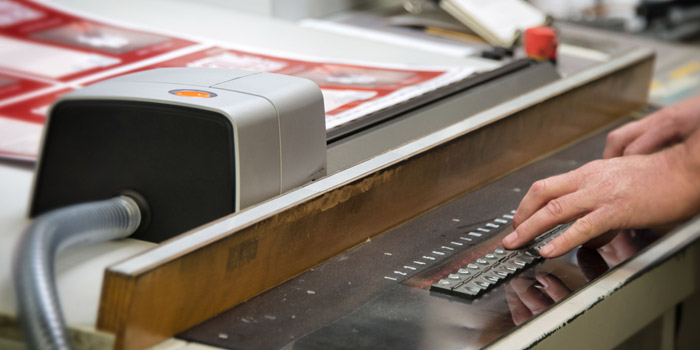

Ultra-Fast Automated Press-Side Color Control
To remain competitive, printers and packaging converters must focus on reducing make-ready time and waste, and minimizing errors and rework. Managing color by eye and/or depending on ink density measurements will not deliver against these requirements. Introducing IntelliTrax2 into the press-side quality control process, printers and packaging converters can assure optimum color quality, fast make-ready, and reduced waste.
Benefits

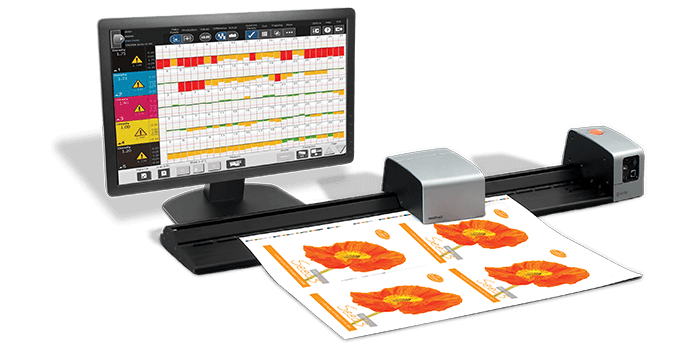

- Reports results on screen instantly so press operators can quickly make adjustments, even before color drift is visible to the human eye.
- Measures process colors, spot colors, PANTONE® colors, paper color, tone value increase, gray balance, and ink density in less than 10 seconds.
- Ensures non-contact with your substrate.
- Supports the majority of global graphic arts standards, including M1 to accommodate optical brighteners, M3 for measuring wet ink and full support for GRACoL, SWOP 2013, PSO, and FOGRA 51 and 52.
- Directly accesses the PantoneLIVE database for accurate spectral target values for corporate and other spot colors and can exchange job data with ColorCert.
Specifications
| BestMatch Feature | Yes |
| Black Background With Sheet Storage | Yes |
| Calibration | Automatic on integrated and covered white reference |
| Color Differences | CIE ∆E* (1976), ∆E CMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Closed Loop Support | Yes |
| Color Bar Alignment | Yes |
| Color Spaces | CIE L*a*b*, CIE L*C*h° |

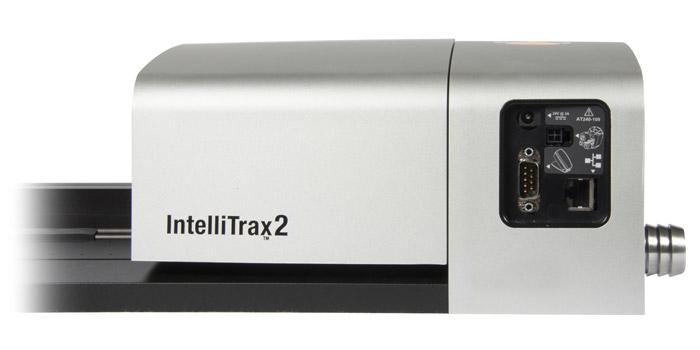

| Communication Interface | Ethernet |
| Configuration Options | Head type, track length, aperture, Handheld, foot switch |
| Connectivity | Ethernet |
| Density Range | 0.0 D to 3.0 D |
| Density Standards | Status A, E, I, T, Tx, Ex, Hi-Fi |
| Display Resolution | Minimum: 17” touch-screen monitor with 1280 x 1024 resolution Recommended: 22” touch-screen monitor with 1920 x 1080 resolution |
| Embedded NetProfiler Support | Yes |
| G7 Certification | Yes |
| Humidity | 30 to 85% RH (non-condensing) |
| Illuminants | A, C, D50, D65, D75, F2, F7, F11, D12 |
| Image Contact During Measurements | No Contact |
| Import/Export Format | CxF3, jtl, cbl, |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2009 |
| Ink Wells / Ink Units | Density Version: Up to 8 Spectral Version: Up to 16 |
| Inter-Instrument Agreement | 0.3 dE*ab |
| Languages Supported | Chinese Simplified, Chinese Traditional, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish |
| Light Source | Gas filled tungsten (illuminant type A) and UV LED |
| Measurement Geometry | 45°/0° ring illumination optics, ISO 5-4:2009(E) |
| Measurement Conditions | M0, M1, M3 |
| Measurement Background | Black as specified in ISO 12647-2 and 3 |
| NetProfiler Support | Yes |
| Observers | 2° and 10° |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| PantoneLIVE Support | Yes |
| Pass / Fail | Yes |
| Patch Size | Small: 2 mm x 3 mm Medium: 3 mm x 3 mm Polarizer: 3 mm x 3 mm |
| Scan Length | 29" (74cm) 32" (81cm) 40"(102cm) 44” (112cm) 56" (142cm) 65" (165cm) |
| Scanning Speed | 170 mm / sec |
| Spectral Analyzer | DRS spectral engine |
| Spectral Interval | 10 nm |
| Spectral Range | 400 nm to 700 nm |
| Spectral Reporting | 400 nm to 700 nm with 10mm interval s |
| Storage Temperature Range | -20° to 50°C -4° to 122°F |
| Short Term Repeatability - Density | On White: ± 0.01 D max. Cyan, Magenta, and Black: ± 0.02 D @ 1.8 D Yellow: S/M: ± 0.02 D @ 2.0 D Polarizer: ± 0.03 D @ 1.8 D |
| Software Development Kit | Yes |
| Software Modes | Density /Spectral |
| Short Term Repeatability - White | 0.15 dE max |
| Supported Devices | IntelliTrax2, eXact |
| Scanning Area | Color bar within 38mm from the sheet edge |
| Scanning Capability | Yes |
| Sheet Storage | Yes |
| Single Pass Scan | M0/M1 or M0/M3 or M1/M3 |
| Track Sizes | 29" (74cm) 32" (81cm) 40"(102cm) 44” (112cm) 56" (142cm) 65" (165cm) |
| Voltage | 100 - 240VAC, 50/60Hz |
| Warranty | 1 year |
| What's Included? | Vacuum pump, Cabling, Power supply, Ethernet cable, Software CD, Manuals, device certificate |
| Windows | Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit) |
