C1-5


Printability tester to produce colour prints with conventional and UV offset inks, for prints of 50 mm width.

Description

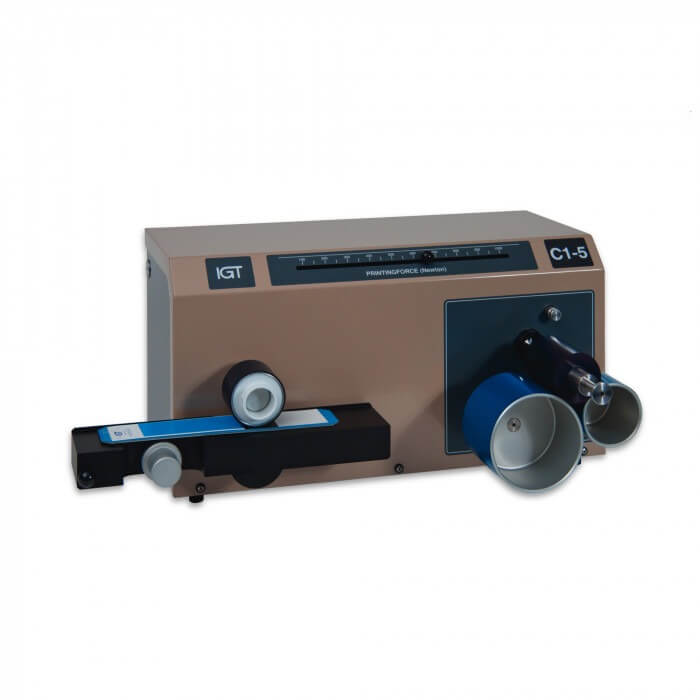

IGT C1-5: Printability tester to produce colour prints with conventional and UV offset inks.

Dedicated tester to produce colour prints of conventional and UV offset inks. Available in versions with print width of 35, 50 and 70 mm and with multiple prints on one substrate. An adapter is available to print directly on metal cans or tubes or the special version CTx3 can print on any diameter of tubes and cans from inner diameter 16 mm up to 68 mm.

World-wide the best printability tester for offset inks.

IGT Testing Systems supplies the C1 type printability testers, which are simple but very successful all over the world for offset inks in various printing widths.

Makes colour strips with offset inks with a known ink layer thickness which can be used for many purposes. Specially designed for computerized colour measuring and colour matching systems.Saves costs because colour tests on the printing presses are no longer necessary.Can print directly on all substrates including ready tubes or cans, version CTx3 can do this on any diameter between 16 and 68 mm.

APPLICATIONS

The C1 printability testers produce colour strips which are suitable for many purposes, such as:

  • Measuring colour with colour measuring systems/spectrophotometers e.g. in colour matching
  • Visual appraisal
  • Density measurements, including establishing colour and density tolerances and determination of coverage, wear resistance, scratch resistance, flexibility, adhesion and gloss, ink transfer (in g/m²), light fastness and resistance to chemicals.
  • Testing printing quality, gloss, mottle and set-off.

The C1-5 tester prints all sorts of coated and uncoated materials like paper, board, plastic film, cellophane, laminate, metal, etc.

  • The C1-5 tester is used in the following industries:
  • printing ink, paper and board, printers
  • metal, plastics and packaging
  • resins, lacquers and coatings
  • raw materials

OPERATION

The C1 type printability testers consist of an inking section and a printing section with removable printing disc (printing form). The inking unit consists of two aluminium drums and a top roller.

The distribution of the ink only takes 30 s due to the diameter ratio and the drum movement. The inking time of the printing disc is 15 s.

Cleaning the systems is very simple and quick, due, among other things, to the fact that both aluminium drums are driven. The printing unit consists of the printing form and an impression cylinder. The substrate is attached to a substrate carrier. The substrate carrier with the substrate is then placed on the substrate guide, between the impression cylinder and the printing disc.

After the printing force has been applied, the print is made automatically. The printing disc is then lifted automatically, after which the substrate is removed for appraisal and the printing disc is cleaned. It is also possible to print on drink cans: for this purpose they are slid on the impression cylinder, the substrate carrier not being used in this case.

The printing force can be set in 19 steps between 100 and 1000 N.

For printing on drink cans, the impression cylinder can be replaced with one of a different diameter.

Features

Makes prints of 35 mm width. The inking unit consists of two driven aluminium drums and a top roller. The distribution of the ink only takes about 30 seconds thanks to the diameter ratio and the oscillating drum movement. The inking time of the printing disc is about 15 seconds. The occillating drums makes cleaning fast and easy. Printing form is automatically brought under pressure, printed and lifted.

  • Inking time: inking section 30 s and printing disc 15 s
  • Three roller system
  • Both aluminium drums driven
  • Low initial costs
  • Area 720 cm²
  • Rigid construction, can be used in a production environment
  • Rubber rollers for conventional or UV-curing inks
  • CE compliant
  • Size: 60 cm x 50 cm x 30 cm
  • Electrical specs: 90-240 V / 50-60 Hz

Technical details

Weight: 35 kg
Dimensions(L x W x H): 60 cm x 50 cm x 30 cm
Model: 425.000.000
Main application: Measuring colour with colour measuring systems spectrophotometers visual appraisal density measurements including establishing tolerances determination of coverage
scratch resistance
wear resistance
flexibility
adhesion and gloss
ink transfer (in g/m²)
Conformance with standards/W-leaflet: ISO 2834, ISO 2846, ISO 12647 and ASTM 7680
Water bath and temperature:
Speed range and modes: Constant : 0.3 m/s
Forces: 100 – 1000 N
Substrate requirements: Can print on all types of coated and uncoated materials: paper, board, plastic film, cellophane, laminate, metals, etc.
Interval time and number:
Printing shafts type and options: 1 printshaft
Shaft positioning:
Lifting system: Automatically
Print length and width: 200 x 35 mm²
Printing discs: Standard delivered with lightweight rubber 35 mm printing disc. Other available discs are aluminium, rubber blanket for conventional or UV inks and rubber for conventional or UV inks.
Sector positioning:
Sector type and options:
Doctoring system:
Dispensing system:
Pre-programmed tests:
Analysis options:
Interfaces:
Software updates:
Data export options:
Additional items: 408.000.200 IGT ink Pipette 0.01 ml resolution
496.000.075 UV Dryer Aktiprint mini 12-1, 1 lamp, 500 W
496.000.275 UV Dryer Aktiprint mini 12-1, 2 lamps, 1000 W
495 Lightbooth with 4 lightsources (A, UV, D65, F10)
555.000.060 IGT Glossmeter G60 (60°)
Accessories: Gloss set W71
Mottle set Back trap method W57
Mottle set Print Method W58
standard inks
Inks or liquids:
Inking speeds:
Inking programs:
Top rollers: Rubber for conventional inks
Rubber for UV-inks
Maintenance: For average use a service check once a year is recommended. The annual maintenance and calibration of the tester can be carried out by IGT Testing Systems or companies authorized by IGT Testing Systems. Information can be obtained from your supplier or from the local agent.
Compatible instruments: 426.000.000 C1-5
429.000.000 C1-7
Measurement range: 0.3 – 10 µm
Light source/ power/angle:
Volume:
Shelf life:
Use life:
Description of property:
Power Supply Requirements: 90-240 V / 50-60 Hz
Guarantee: Standard one year
Space requirements: 0.7 m²
Standard delivery time: 4-6 weeks
